UVM-Testbench-Example-2

2024-01-24
#UVM #Testbench Structure
UVM

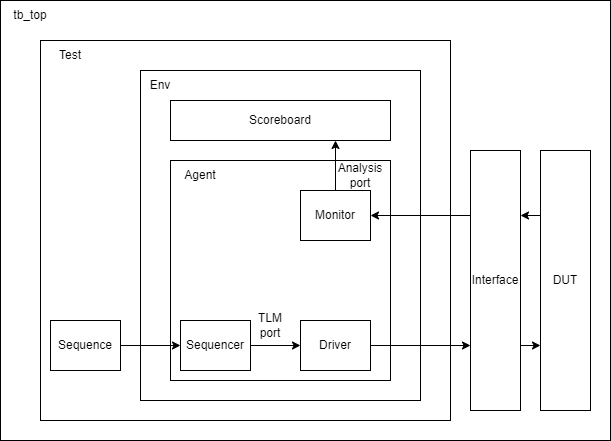

這個例子跟前一個例子的Testbench架構是一樣的

Alt text

Design

這個design的input是addr和data，如果addr小於等於 ADDR_DIV 的話，就會把資料導到addr_a/data_a，反之則導到addr_b/data_b。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
module switch
  # (parameter ADDR_WIDTH = 8,
     parameter DATA_WIDTH = 16,
     parameter ADDR_DIV = 8'h3F
    )
  ( input clk,
    input rstn,
    input vld,

    input [ADDR_WIDTH-1:0] addr,
    input [DATA_WIDTH-1:0] data,

    output reg [ADDR_WIDTH-1:0] addr_a,
    output reg [DATA_WIDTH-1:0] data_a,
    output reg [ADDR_WIDTH-1:0] addr_b,
    output reg [DATA_WIDTH-1:0] data_b
  );

  always @ (posedge clk) begin
    if (!rstn) begin
        addr_a <= 0;
        data_a <= 0;
        addr_b <= 0;
        data_b <= 0;
    end
    else begin
      if (vld) begin
        if (addr >= 0 & addr <= ADDR_DIV) begin
            addr_a <= addr;
            data_a <= data;
            addr_b <= 0;
            data_b <= 0;
        end else begin
            addr_a <= 0;
            data_a <= 0;
            addr_b <= addr;
            data_b <= data;
        end
      end
    end
  end
endmodule

Testbench & Interface

這邊就把完整的testbench不分段直接放上，testbench需要注意的地方是monitor使用了兩個thread輪流監聽interface的資料，透過一個semaphore來讓兩個thread輪流去監聽interface。

因為design裡面addr_a/data_a和addr_b/data_b也是要等到下一個clock posedge的時候才會變化，所以monitor在中間插了一個@ (posedge vif.clk)。
Alt text

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
import uvm_pkg::*;
`include "uvm_macros.svh"

interface switch_if (input bit clk);
  logic rstn;
  logic vld;
  logic [7:0] addr;
  logic [15:0] data;
  logic [7:0] addr_a;
  logic [15:0] data_a;
  logic [7:0] addr_b;
  logic [15:0] data_b;
endinterface

class switch_item extends uvm_sequence_item;
    bit [7:0]  addr;
    bit [15:0] data;
    bit [7:0]  addr_a;
    bit [15:0] data_a;
    bit [7:0]  addr_b;
    bit [15:0] data_b;

    `uvm_object_utils_begin(switch_item)
        `uvm_field_int(addr, UVM_DEFAULT)
        `uvm_field_int(data, UVM_DEFAULT)
        `uvm_field_int(addr_a, UVM_DEFAULT)
        `uvm_field_int(data_a, UVM_DEFAULT)
        `uvm_field_int(addr_b, UVM_DEFAULT)
        `uvm_field_int(data_b, UVM_DEFAULT)
    `uvm_object_utils_end

    virtual function string convert2str();
        return $sformatf("addr=0x%0h data=0x%0h addr_a=0x%0h data_a=0x%0h addr_b=0x%0h data_b=0x%0h",
                          addr, data, addr_a, data_a, addr_b, data_b);
    endfunction

    function new(string name = "switch_item");
        super.new(name);
    endfunction
endclass

class driver extends uvm_driver#(switch_item);
    `uvm_component_utils(driver)
    function new(string name = "driver", uvm_component parent = null);
        super.new(name, parent);
    endfunction

    virtual switch_if vif;

    virtual function void build_phase(uvm_phase phase);
        super.build_phase(phase);
        if(!uvm_config_db#(virtual switch_if)::get(this, "", "switch_if", vif))
            `uvm_fatal("DRV", "Could NOT get vif");
    endfunction

    virtual task run_phase(uvm_phase phase);
        super.run_phase(phase);
        forever begin
            switch_item m_item;
            `uvm_info("DRV", $sformatf("wait for item from sequencer"), UVM_LOW);
            seq_item_port.get_next_item(m_item);
            drive_item(m_item);
            seq_item_port.item_done();
        end
    endtask

    virtual task drive_item(switch_item m_item);
        vif.vld <= 1;
        vif.addr <= m_item.addr;
        vif.data <= m_item.data;
        @(posedge vif.clk);
        // while (!vif.vld) begin
        //     `uvm_info("DRV", "wait until vld is high", UVM_LOW)
        //     @(posedge vif.clk);
        // end

        vif.vld <= 0;
    endtask
endclass

class monitor extends uvm_monitor;
    `uvm_component_utils(monitor)
    function new(string name = "Monitor", uvm_component parent = null);
        super.new(name, parent);
    endfunction

    uvm_analysis_port #(switch_item) mon_analysis_port;
    virtual switch_if vif;
    semaphore sema4;

    virtual function void build_phase(uvm_phase phase);
        super.build_phase(phase);

        if(!uvm_config_db#(virtual switch_if)::get(this, "", "switch_if", vif)) begin
          `uvm_fatal("MON", "Could not get vif");
        end
        else begin
            `uvm_info("MON", "Could get vif", UVM_LOW);
        end
        sema4 = new(1);
        mon_analysis_port = new("mon_analysis_port", this);
    endfunction

    // virtual task run_phase(uvm_phase phase);
    //     super.run_phase(phase);

    //     forever begin
    //       @ (posedge vif.clk);
    //       if (vif.vld) begin
    //         switch_item item = new;
    //         item.addr = vif.addr;
    //         item.data = vif.data;

    //         @ (posedge vif.clk);
    //         item.addr_a = vif.addr_a;
    //         item.data_a = vif.data_a;
    //         item.addr_b = vif.addr_b;
    //         item.data_b = vif.data_b;

    //         `uvm_info(get_type_name(), $sformatf("Monitor found packet %s", item.convert2str()), UVM_LOW)
    //         mon_analysis_port.write(item);
    //       end
    //     end
    // endtask

    virtual task run_phase(uvm_phase phase);
      super.run_phase(phase);

      fork
        sample_port("Thread1");
        sample_port("Thread2");
      join
    endtask

    virtual task sample_port(string tag);
      `uvm_info("MON", $sformatf("thread:%s start", tag), UVM_LOW)
      forever begin
        @ (posedge vif.clk);
        if (vif.vld) begin
          switch_item item = new;
          sema4.get();
          item.addr = vif.addr;
          item.data = vif.data;
          `uvm_info("MON", $sformatf("%s 1st step", tag), UVM_LOW)
          @ (posedge vif.clk);
          item.addr_a = vif.addr_a;
          item.data_a = vif.data_a;
          item.addr_b = vif.addr_b;
          item.data_b = vif.data_b;
          `uvm_info("MON", $sformatf("%s 2nd step", tag), UVM_LOW)
          mon_analysis_port.write(item);
          sema4.put();
        end
      end
    endtask
endclass

class agent extends uvm_agent;
  `uvm_component_utils(agent)
  function new(string name = "agent", uvm_component parent = null);
    super.new(name, parent);
  endfunction

  monitor m0;
  driver d0;
  uvm_sequencer #(switch_item) s0;

  virtual function void build_phase(uvm_phase phase);
    super.build_phase(phase);
    m0 = monitor::type_id::create("m0", this);
    d0 = driver::type_id::create("d0", this);
    s0 = uvm_sequencer#(switch_item)::type_id::create("s0", this);
  endfunction

  virtual function void connect_phase(uvm_phase phase);
    super.connect_phase(phase);
    d0.seq_item_port.connect(s0.seq_item_export);
  endfunction
endclass

class scoreboard extends uvm_scoreboard;
  `uvm_component_utils(scoreboard)
  function new(string name = "scoreboard", uvm_component parent = null);
    super.new(name, parent);
  endfunction

  // switch_item refq[`DEPTH];
  uvm_analysis_imp #(switch_item, scoreboard) m_analysis_imp;

  virtual function void build_phase(uvm_phase phase);
    super.build_phase(phase);
    m_analysis_imp = new("m_analysis_imp", this);
  endfunction

  virtual function write(switch_item item);
    // if(!item.rstn) begin
    //   if (item.addr_a == 0 && item.data_a != 0 && item.addr_b != 0 && item.data_b != 0) begin
    //     `uvm_info(get_type_name(), $sformatf("rst addr_a data_a addr_b data_b are all zero"), UVM_LOW);
    //   end
    //   else begin
    //     `uvm_error(get_type_name(),
    //               $sformatf("In rst state. but not all data are zero addr_a=0x%0h data_a=0x%0h addr_b=0x%0h addr_b=0x%0h",
    //               item.addr_a, item.data_a, item.addr_b, item.data_b)
    //               );
    //   end
    // end
    // else begin
      if (item.addr <= 8'h3F) begin
        if (item.addr == item.addr_a && item.data == item.data_a && 0 == item.addr_b && 0 == item.data_b) begin
          `uvm_info(get_type_name(), $sformatf("item.addr <= ADDR_DIV expected result"), UVM_LOW);
        end
        else begin
          `uvm_error(get_type_name(),
                    $sformatf("item.addr <= ADDR_DIV result error addr=0x%0h data=0x%0h addr_a=0x%0h data_a=0x%0h addr_b=0x%0h addr_b=0x%0h",
                    item.addr, item.data, item.addr_a, item.data_a, item.addr_b, item.data_b)
                    );
        end
      end
      else begin
        if (item.addr == item.addr_b && item.data == item.data_b && 0 == item.addr_a && 0 == item.data_a) begin
          `uvm_info(get_type_name(), $sformatf("item.addr > ADDR_DIV expected result"), UVM_LOW);
        end
        else begin
          `uvm_error(get_type_name(),
                     $sformatf("item.addr > ADDR_DIV result error addr=0x%0h data=0x%0h addr_a=0x%0h data_a=0x%0h addr_b=0x%0h addr_b=0x%0h",
                     item.addr, item.data, item.addr_a, item.data_a, item.addr_b, item.data_b)
                    );
        end
      end
    // end
  endfunction
endclass

class env extends uvm_env;
  `uvm_component_utils(env)
  function new(string name = "env", uvm_component parent = null);
    super.new(name, parent);
  endfunction

  agent a0;
  scoreboard sb0;

  virtual function void build_phase(uvm_phase phase);
    super.build_phase(phase);
    a0 = agent::type_id::create("a0", this);
    sb0 = scoreboard::type_id::create("sb0", this);
  endfunction

  virtual function void connect_phase(uvm_phase phase);
    super.connect_phase(phase);
    a0.m0.mon_analysis_port.connect(sb0.m_analysis_imp);
  endfunction
endclass

class gen_item_seq extends uvm_sequence;
  `uvm_object_utils(gen_item_seq)
  function new(string name = "gen_item_seq");
    super.new(name);
  endfunction

  int num = 10;

  virtual task body();
    for (int i = 0; i < num; i++) begin
      switch_item m_item = switch_item::type_id::create("m_item");
      start_item(m_item);
      m_item.addr = (i + 8'h38);
      m_item.data = $random;
      `uvm_info("SEQ", $sformatf("Generate1 new item: "), UVM_LOW)
      m_item.print();
      finish_item(m_item);
    end

    `uvm_info("SEQ", $sformatf("done %0d time", num), UVM_LOW)
  endtask
endclass

class test extends uvm_test;
  `uvm_component_utils(test)
  function new(string name = "test", uvm_component parent = null);
    super.new(name, parent);
  endfunction

  env e0;
  virtual switch_if vif;

  virtual function void build_phase(uvm_phase phase);
    super.build_phase(phase);
    e0 = env::type_id::create("e0", this);
    if (!uvm_config_db#(virtual switch_if)::get(this, "", "switch_if", vif))
      `uvm_fatal("TEST", "Did not get vif")

    uvm_config_db#(virtual switch_if)::set(this, "e0.a0.*", "switch_if", vif);
  endfunction

  virtual function void end_of_elaboration_phase(uvm_phase phase);
    super.end_of_elaboration_phase(phase);
    uvm_top.print_topology();
  endfunction

  virtual task run_phase(uvm_phase phase);
    gen_item_seq seq = gen_item_seq::type_id::create("seq");
    phase.raise_objection(this);

    apply_reset();
    seq.num = 25;
    $display("seq.start");
    seq.start(e0.a0.s0);
    $display("seq gogo");
    #1000
    phase.drop_objection(this);
  endtask

  virtual task apply_reset();
    vif.rstn <= 0;
    $display("apply_reset vif.rstn:%0b", vif.rstn);
    repeat(5) @(posedge vif.clk);
    $display("apply_reset vif.rstn:%0b", vif.rstn);
    vif.rstn <= 1;
    repeat(10) @(posedge vif.clk);
    $display("apply_reset vif.rstn:%0b", vif.rstn);
  endtask
endclass

module tb;
    reg clk = 0;
    always #10 clk = ~clk;
    switch_if _if(clk);

    switch u0(.clk(clk),
              .rstn(_if.rstn),
              .vld(_if.vld),
              .addr(_if.addr),
              .data(_if.data),
              .addr_a(_if.addr_a),
              .data_a(_if.data_a),
              .addr_b(_if.addr_b),
              .data_b(_if.data_b)
               );
    initial begin
        $display("tb_start");
        uvm_config_db #(virtual switch_if)::set (null, "uvm_test_top", "switch_if", _if);
        run_test("test");
        $display("tb_end");
    end

    initial begin
      $dumpvars;
      $dumpfile("dump.vcd");
    end
endmodule

Output

我的code裡面addr是從0x38開始直接往下加，data才是用random的，比較容易看結果是不是正確的。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
Reading pref.tcl

# 2021.2

# vsim -c tb -do "run 10000"
# Start time: 00:13:16 on Jan 25,2024
# ** Note: (vsim-3812) Design is being optimized...
# ** Warning: .\tb.sv(243): (vopt-2250) Function "write" has no return value assignment.
# ** Note: (vsim-12126) Error and warning message counts have been restored: Errors=0, Warnings=1.
# //  Questa Intel Starter FPGA Edition-64
# //  Version 2021.2 win64 Apr 14 2021
# //
# //  Copyright 1991-2021 Mentor Graphics Corporation
# //  All Rights Reserved.
# //
# //  QuestaSim and its associated documentation contain trade
# //  secrets and commercial or financial information that are the property of
# //  Mentor Graphics Corporation and are privileged, confidential,
# //  and exempt from disclosure under the Freedom of Information Act,
# //  5 U.S.C. Section 552. Furthermore, this information
# //  is prohibited from disclosure under the Trade Secrets Act,
# //  18 U.S.C. Section 1905.
# //
# Loading sv_std.std
# Loading mtiUvm.uvm_pkg(fast)
# Loading work.tb_sv_unit(fast)
# Loading mtiUvm.questa_uvm_pkg(fast)
# Loading work.tb(fast)
# Loading work.switch_if(fast)
# ** Warning: (vsim-3764) Stand-alone call to function 'write' treated as implicit void cast.
#    Time: 0 ns  Iteration: 0  Region: /uvm_pkg::uvm_analysis_imp #(tb_sv_unit::switch_item, tb_sv_unit::scoreboard) File: C:/intelFPGA/22.1std/questa_fse/win64/../verilog_src/uvm-1.1d/src/tlm1/uvm_analysis_port.svh Line:
114
# Loading C:/intelFPGA/22.1std/questa_fse/uvm-1.1d\win64\uvm_dpi.dll
# run 10000
# ----------------------------------------------------------------
# UVM-1.1d
# (C) 2007-2013 Mentor Graphics Corporation
# (C) 2007-2013 Cadence Design Systems, Inc.
# (C) 2006-2013 Synopsys, Inc.
# (C) 2011-2013 Cypress Semiconductor Corp.
# ----------------------------------------------------------------
#
#   ***********       IMPORTANT RELEASE NOTES         ************
#
#   You are using a version of the UVM library that has been compiled
#   with `UVM_NO_DEPRECATED undefined.
#   See http://www.eda.org/svdb/view.php?id=3313 for more details.
#
#   You are using a version of the UVM library that has been compiled
#   with `UVM_OBJECT_MUST_HAVE_CONSTRUCTOR undefined.
#   See http://www.eda.org/svdb/view.php?id=3770 for more details.
#
#       (Specify +UVM_NO_RELNOTES to turn off this notice)
#
# UVM_INFO verilog_src/questa_uvm_pkg-1.2/src/questa_uvm_pkg.sv(277) @ 0: reporter [Questa UVM] QUESTA_UVM-1.2.3
# UVM_INFO verilog_src/questa_uvm_pkg-1.2/src/questa_uvm_pkg.sv(278) @ 0: reporter [Questa UVM]  questa_uvm::init(+struct)
# tb_start
# UVM_INFO @ 0: reporter [RNTST] Running test test...
# ** Warning: (vsim-PLI-3826) $dumpfile : This task should be called prior to the $dumpvars
# task.  The $dumpfile task will be ignored.
#    Time: 0 ns  Iteration: 0  Process: /tb/#INITIAL#395 File: ./tb.sv Line: 397
# UVM_INFO .\tb.sv(146) @ 0: uvm_test_top.e0.a0.m0 [MON] Could get vif
# UVM_INFO @ 0: reporter [UVMTOP] UVM testbench topology:
# --------------------------------------------------------------
# Name                       Type                    Size  Value
# --------------------------------------------------------------
# uvm_test_top               test                    -     @471
#   e0                       env                     -     @478
#     a0                     agent                   -     @488
#       d0                   driver                  -     @510
#         rsp_port           uvm_analysis_port       -     @525
#         seq_item_port      uvm_seq_item_pull_port  -     @517
#       m0                   monitor                 -     @503
#         mon_analysis_port  uvm_analysis_port       -     @644
#       s0                   uvm_sequencer           -     @533
#         rsp_export         uvm_analysis_export     -     @540
#         seq_item_export    uvm_seq_item_pull_imp   -     @634
#         arbitration_queue  array                   0     -
#         lock_queue         array                   0     -
#         num_last_reqs      integral                32    'd1
#         num_last_rsps      integral                32    'd1
#     sb0                    scoreboard              -     @495
#       m_analysis_imp       uvm_analysis_imp        -     @657
# --------------------------------------------------------------
#
# apply_reset vif.rstn:x
# UVM_INFO .\tb.sv(184) @ 0: uvm_test_top.e0.a0.m0 [MON] thread:Thread1 start
# UVM_INFO .\tb.sv(184) @ 0: uvm_test_top.e0.a0.m0 [MON] thread:Thread2 start
# UVM_INFO .\tb.sv(108) @ 0: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# apply_reset vif.rstn:0
# apply_reset vif.rstn:1
# seq.start
# UVM_INFO .\tb.sv(317) @ 290: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @696
#   addr                         integral     8     'h38
#   data                         integral     16    'h3524
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    290
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 310: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(192) @ 310: uvm_test_top.e0.a0.m0 [MON] Thread1 1st step
# UVM_INFO .\tb.sv(317) @ 310: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @709
#   addr                         integral     8     'h39
#   data                         integral     16    'h5e81
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    310
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 330: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 330: uvm_test_top.e0.a0.m0 [MON] Thread1 2nd step
# UVM_INFO .\tb.sv(258) @ 330: uvm_test_top.e0.sb0 [scoreboard] item.addr <= ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 330: uvm_test_top.e0.a0.m0 [MON] Thread2 1st step
# UVM_INFO .\tb.sv(317) @ 330: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @713
#   addr                         integral     8     'h3a
#   data                         integral     16    'hd609
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    330
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 350: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 350: uvm_test_top.e0.a0.m0 [MON] Thread2 2nd step
# UVM_INFO .\tb.sv(258) @ 350: uvm_test_top.e0.sb0 [scoreboard] item.addr <= ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 350: uvm_test_top.e0.a0.m0 [MON] Thread1 1st step
# UVM_INFO .\tb.sv(317) @ 350: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @721
#   addr                         integral     8     'h3b
#   data                         integral     16    'h5663
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    350
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 370: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 370: uvm_test_top.e0.a0.m0 [MON] Thread1 2nd step
# UVM_INFO .\tb.sv(258) @ 370: uvm_test_top.e0.sb0 [scoreboard] item.addr <= ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 370: uvm_test_top.e0.a0.m0 [MON] Thread2 1st step
# UVM_INFO .\tb.sv(317) @ 370: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @729
#   addr                         integral     8     'h3c
#   data                         integral     16    'h7b0d
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    370
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 390: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 390: uvm_test_top.e0.a0.m0 [MON] Thread2 2nd step
# UVM_INFO .\tb.sv(258) @ 390: uvm_test_top.e0.sb0 [scoreboard] item.addr <= ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 390: uvm_test_top.e0.a0.m0 [MON] Thread1 1st step
# UVM_INFO .\tb.sv(317) @ 390: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @737
#   addr                         integral     8     'h3d
#   data                         integral     16    'h998d
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    390
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 410: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 410: uvm_test_top.e0.a0.m0 [MON] Thread1 2nd step
# UVM_INFO .\tb.sv(258) @ 410: uvm_test_top.e0.sb0 [scoreboard] item.addr <= ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 410: uvm_test_top.e0.a0.m0 [MON] Thread2 1st step
# UVM_INFO .\tb.sv(317) @ 410: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @745
#   addr                         integral     8     'h3e
#   data                         integral     16    'h8465
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    410
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 430: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 430: uvm_test_top.e0.a0.m0 [MON] Thread2 2nd step
# UVM_INFO .\tb.sv(258) @ 430: uvm_test_top.e0.sb0 [scoreboard] item.addr <= ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 430: uvm_test_top.e0.a0.m0 [MON] Thread1 1st step
# UVM_INFO .\tb.sv(317) @ 430: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @753
#   addr                         integral     8     'h3f
#   data                         integral     16    'h5212
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    430
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 450: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 450: uvm_test_top.e0.a0.m0 [MON] Thread1 2nd step
# UVM_INFO .\tb.sv(258) @ 450: uvm_test_top.e0.sb0 [scoreboard] item.addr <= ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 450: uvm_test_top.e0.a0.m0 [MON] Thread2 1st step
# UVM_INFO .\tb.sv(317) @ 450: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @761
#   addr                         integral     8     'h40
#   data                         integral     16    'he301
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    450
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 470: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 470: uvm_test_top.e0.a0.m0 [MON] Thread2 2nd step
# UVM_INFO .\tb.sv(258) @ 470: uvm_test_top.e0.sb0 [scoreboard] item.addr <= ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 470: uvm_test_top.e0.a0.m0 [MON] Thread1 1st step
# UVM_INFO .\tb.sv(317) @ 470: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @769
#   addr                         integral     8     'h41
#   data                         integral     16    'hcd0d
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    470
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 490: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 490: uvm_test_top.e0.a0.m0 [MON] Thread1 2nd step
# UVM_INFO .\tb.sv(269) @ 490: uvm_test_top.e0.sb0 [scoreboard] item.addr > ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 490: uvm_test_top.e0.a0.m0 [MON] Thread2 1st step
# UVM_INFO .\tb.sv(317) @ 490: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @777
#   addr                         integral     8     'h42
#   data                         integral     16    'hf176
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    490
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 510: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 510: uvm_test_top.e0.a0.m0 [MON] Thread2 2nd step
# UVM_INFO .\tb.sv(269) @ 510: uvm_test_top.e0.sb0 [scoreboard] item.addr > ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 510: uvm_test_top.e0.a0.m0 [MON] Thread1 1st step
# UVM_INFO .\tb.sv(317) @ 510: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @785
#   addr                         integral     8     'h43
#   data                         integral     16    'hcd3d
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    510
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 530: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 530: uvm_test_top.e0.a0.m0 [MON] Thread1 2nd step
# UVM_INFO .\tb.sv(269) @ 530: uvm_test_top.e0.sb0 [scoreboard] item.addr > ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 530: uvm_test_top.e0.a0.m0 [MON] Thread2 1st step
# UVM_INFO .\tb.sv(317) @ 530: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @793
#   addr                         integral     8     'h44
#   data                         integral     16    'h57ed
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    530
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 550: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 550: uvm_test_top.e0.a0.m0 [MON] Thread2 2nd step
# UVM_INFO .\tb.sv(269) @ 550: uvm_test_top.e0.sb0 [scoreboard] item.addr > ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 550: uvm_test_top.e0.a0.m0 [MON] Thread1 1st step
# UVM_INFO .\tb.sv(317) @ 550: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @801
#   addr                         integral     8     'h45
#   data                         integral     16    'hf78c
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    550
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 570: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 570: uvm_test_top.e0.a0.m0 [MON] Thread1 2nd step
# UVM_INFO .\tb.sv(269) @ 570: uvm_test_top.e0.sb0 [scoreboard] item.addr > ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 570: uvm_test_top.e0.a0.m0 [MON] Thread2 1st step
# UVM_INFO .\tb.sv(317) @ 570: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @809
#   addr                         integral     8     'h46
#   data                         integral     16    'he9f9
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    570
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 590: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 590: uvm_test_top.e0.a0.m0 [MON] Thread2 2nd step
# UVM_INFO .\tb.sv(269) @ 590: uvm_test_top.e0.sb0 [scoreboard] item.addr > ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 590: uvm_test_top.e0.a0.m0 [MON] Thread1 1st step
# UVM_INFO .\tb.sv(317) @ 590: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @817
#   addr                         integral     8     'h47
#   data                         integral     16    'h24c6
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    590
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 610: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 610: uvm_test_top.e0.a0.m0 [MON] Thread1 2nd step
# UVM_INFO .\tb.sv(269) @ 610: uvm_test_top.e0.sb0 [scoreboard] item.addr > ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 610: uvm_test_top.e0.a0.m0 [MON] Thread2 1st step
# UVM_INFO .\tb.sv(317) @ 610: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @825
#   addr                         integral     8     'h48
#   data                         integral     16    'h84c5
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    610
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 630: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 630: uvm_test_top.e0.a0.m0 [MON] Thread2 2nd step
# UVM_INFO .\tb.sv(269) @ 630: uvm_test_top.e0.sb0 [scoreboard] item.addr > ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 630: uvm_test_top.e0.a0.m0 [MON] Thread1 1st step
# UVM_INFO .\tb.sv(317) @ 630: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @833
#   addr                         integral     8     'h49
#   data                         integral     16    'hd2aa
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    630
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 650: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 650: uvm_test_top.e0.a0.m0 [MON] Thread1 2nd step
# UVM_INFO .\tb.sv(269) @ 650: uvm_test_top.e0.sb0 [scoreboard] item.addr > ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 650: uvm_test_top.e0.a0.m0 [MON] Thread2 1st step
# UVM_INFO .\tb.sv(317) @ 650: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @841
#   addr                         integral     8     'h4a
#   data                         integral     16    'hf7e5
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    650
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 670: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 670: uvm_test_top.e0.a0.m0 [MON] Thread2 2nd step
# UVM_INFO .\tb.sv(269) @ 670: uvm_test_top.e0.sb0 [scoreboard] item.addr > ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 670: uvm_test_top.e0.a0.m0 [MON] Thread1 1st step
# UVM_INFO .\tb.sv(317) @ 670: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @849
#   addr                         integral     8     'h4b
#   data                         integral     16    'h7277
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    670
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 690: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 690: uvm_test_top.e0.a0.m0 [MON] Thread1 2nd step
# UVM_INFO .\tb.sv(269) @ 690: uvm_test_top.e0.sb0 [scoreboard] item.addr > ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 690: uvm_test_top.e0.a0.m0 [MON] Thread2 1st step
# UVM_INFO .\tb.sv(317) @ 690: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @857
#   addr                         integral     8     'h4c
#   data                         integral     16    'hd612
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    690
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 710: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 710: uvm_test_top.e0.a0.m0 [MON] Thread2 2nd step
# UVM_INFO .\tb.sv(269) @ 710: uvm_test_top.e0.sb0 [scoreboard] item.addr > ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 710: uvm_test_top.e0.a0.m0 [MON] Thread1 1st step
# UVM_INFO .\tb.sv(317) @ 710: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @865
#   addr                         integral     8     'h4d
#   data                         integral     16    'hdb8f
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    710
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 730: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 730: uvm_test_top.e0.a0.m0 [MON] Thread1 2nd step
# UVM_INFO .\tb.sv(269) @ 730: uvm_test_top.e0.sb0 [scoreboard] item.addr > ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 730: uvm_test_top.e0.a0.m0 [MON] Thread2 1st step
# UVM_INFO .\tb.sv(317) @ 730: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @873
#   addr                         integral     8     'h4e
#   data                         integral     16    'h69f2
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    730
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 750: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 750: uvm_test_top.e0.a0.m0 [MON] Thread2 2nd step
# UVM_INFO .\tb.sv(269) @ 750: uvm_test_top.e0.sb0 [scoreboard] item.addr > ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 750: uvm_test_top.e0.a0.m0 [MON] Thread1 1st step
# UVM_INFO .\tb.sv(317) @ 750: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @881
#   addr                         integral     8     'h4f
#   data                         integral     16    'h96ce
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    750
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 770: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 770: uvm_test_top.e0.a0.m0 [MON] Thread1 2nd step
# UVM_INFO .\tb.sv(269) @ 770: uvm_test_top.e0.sb0 [scoreboard] item.addr > ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 770: uvm_test_top.e0.a0.m0 [MON] Thread2 1st step
# UVM_INFO .\tb.sv(317) @ 770: uvm_test_top.e0.a0.s0@@seq [SEQ] Generate1 new item:
# ---------------------------------------------------------------------------
# Name                           Type         Size  Value
# ---------------------------------------------------------------------------
# m_item                         switch_item  -     @889
#   addr                         integral     8     'h50
#   data                         integral     16    'h7ae8
#   addr_a                       integral     8     'h0
#   data_a                       integral     16    'h0
#   addr_b                       integral     8     'h0
#   data_b                       integral     16    'h0
#   begin_time                   time         64    770
#   depth                        int          32    'd2
#   parent sequence (name)       string       3     seq
#   parent sequence (full name)  string       25    uvm_test_top.e0.a0.s0.seq
#   sequencer                    string       21    uvm_test_top.e0.a0.s0
# ---------------------------------------------------------------------------
# UVM_INFO .\tb.sv(108) @ 790: uvm_test_top.e0.a0.d0 [DRV] wait for item from sequencer
# UVM_INFO .\tb.sv(198) @ 790: uvm_test_top.e0.a0.m0 [MON] Thread2 2nd step
# UVM_INFO .\tb.sv(269) @ 790: uvm_test_top.e0.sb0 [scoreboard] item.addr > ADDR_DIV expected result
# UVM_INFO .\tb.sv(192) @ 790: uvm_test_top.e0.a0.m0 [MON] Thread1 1st step
# UVM_INFO .\tb.sv(322) @ 790: uvm_test_top.e0.a0.s0@@seq [SEQ] done 25 time
# seq gogo
# UVM_INFO .\tb.sv(198) @ 810: uvm_test_top.e0.a0.m0 [MON] Thread1 2nd step
# UVM_INFO .\tb.sv(269) @ 810: uvm_test_top.e0.sb0 [scoreboard] item.addr > ADDR_DIV expected result
# UVM_INFO verilog_src/uvm-1.1d/src/base/uvm_objection.svh(1267) @ 1790: reporter [TEST_DONE] 'run' phase is ready to proceed to the 'extract' phase
#
# --- UVM Report Summary ---
#
# ** Report counts by severity
# UVM_INFO :  135
# UVM_WARNING :    0
# UVM_ERROR :    0
# UVM_FATAL :    0
# ** Report counts by id
# [DRV]    26
# [MON]    53
# [Questa UVM]     2
# [RNTST]     1
# [SEQ]    26
# [TEST_DONE]     1
# [UVMTOP]     1
# [scoreboard]    25
# ** Note: $finish    : C:/intelFPGA/22.1std/questa_fse/win64/../verilog_src/uvm-1.1d/src/base/uvm_root.svh(430)
#    Time: 1790 ns  Iteration: 54  Instance: /tb
# End time: 00:13:20 on Jan 25,2024, Elapsed time: 0:00:04
# Errors: 0, Warnings: 3
